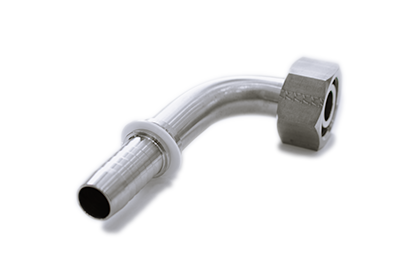

B-DKR -90°
Opis proizvoda
Material: AISI 316, AISI 316 Ti

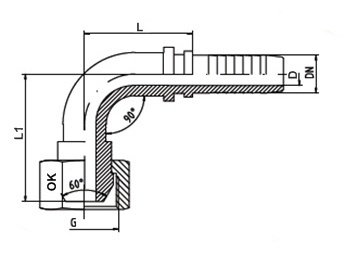

Dimenzije
| Hose DN | DN [in.] | G | L | L1 | D | SW | Part-No. |
|---|---|---|---|---|---|---|---|
| 5 | 3/16" | 1/8"-28 | - | - | 3 | 14 | B-DKR 1/8" -90°-DN 05 |
| 6 | 1/4" | 1/8"-28 | 28,5 | 30 | 4 | 14 | B-DKR 1/8" -90°-DN 06 |
| 5 | 3/16" | 1/4"-19 | - | - | 3 | 17 | B-DKR 1/4" -90°-DN 05 |
| 6 | 1/4" | 1/4"-19 | 28,5 | 28 | 4 | 17 | B-DKR 1/4" -90°-DN 06 |
| 8 | 5/16" | 1/4"-19 | 36 | 36 | 5,5 | 19 | B-DKR 1/4" -90°-DN 08 |
| 10 | 3/8" | 1/4"-19 | 34 | 39 | 6 | 19 | B-DKR 1/4" -90°-DN 10 |
| 6 | 1/4" | 3/8"-19 | 29 | 26 | 4 | 19 | B-DKR 3/8" -90°-DN 06 |
| 8 | 5/16" | 3/8"-19 | 33 | 34 | 5,5 | 19 | B-DKR 3/8" -90°-DN 08 |
| 10 | 3/8" | 3/8"-19 | 33 | 34 | 7 | 19 | B-DKR 3/8" -90°-DN 10 |
| 12 | 1/2" | 3/8"-19 | 44 | 47,5 | 9 | 22 | B-DKR 3/8" -90°-DN 12 |
| 10 | 3/8" | 1/2"-14 | 44 | 42,5 | 7 | 27 | B-DKR 1/2" -90°-DN 10 |
| 12 | 1/2" | 1/2"-14 | 44 | 42,5 | 9,5 | 27 | B-DKR 1/2" -90°-DN 12 |
| 16 | 5/8" | 1/2"-14 | 58 | 53 | 12,5 | 27 | B-DKR 1/2" -90°-DN 16 |
| 12 | 1/2" | 5/8"-14 | 44 | 50,5 | 9,5 | 27 | B-DKR 5/8" -90°-DN 12 |
| 16 | 5/8" | 5/8"-14 | 55 | 54 | 12,5 | 27 | B-DKR 5/8" -90°-DN 16 |
| 12 | 1/2" | 3/4"-14 | 47,5 | 43 | 9,5 | 32 | B-DKR 3/4" -90°-DN 12 |
| 16 | 5/8" | 3/4"-14 | 55 | 54 | 12,5 | 32 | B-DKR 3/4" -90°-DN 16 |
| 19 | 3/4" | 3/4"-14 | 61 | 54 | 14,5 | 32 | B-DKR 3/4" -90°-DN 19 |
| 19 | 3/4" | 1"-11 | 78 | 69 | 14,5 | 41 | B-DKR 1" -90°-DN 19 |
| 25 | 1" | 1"-11 | 78 | 69 | 20 | 41 | B-DKR 1" -90°-DN 25 |
| 25 | 1" | 1 1/4"-11 | 82 | 81 | 20 | 50 | B-DKR 1 1/4" -90°-DN 25 |
| 31 | 1 1/4" | 1 1/4"-11 | 87 | 81 | 25 | 50 | B-DKR 1 1/4" -90°-DN 31 |
| 31 | 1 1/4" | 1 1/2"-11 | 125 | 103 | 25 | 55 | B-DKR 1 1/2" -90°-DN 31 |
| 38 | 1 1/2" | 1 1/2"-11 | 104 | 102 | 31 | 55 | B-DKR 1 1/2" -90°-DN 38 |
| 38 | 1 1/2" | 2"-11 | - | - | - | 70 | B-DKR 2" -90°-DN 38 |
| 51 | 2" | 2"-11 | 142 | 133 | 40 | 70 | B-DKR 2" -90°-DN 51 |
